SHINING conveyor roller chains can serve in many industrial applications, like food, filling lines, mining equipment, metallurgy industry, lifting equipment, etc. Compared with belts, roller chains provide an average transmission ratio and have high transmission efficiency. These chains do not require a large tensile force, provide reliable transmission and strong overload ability, also can work well under low speed and heavy load. For Non-standard Chain, MOQ=100FT.

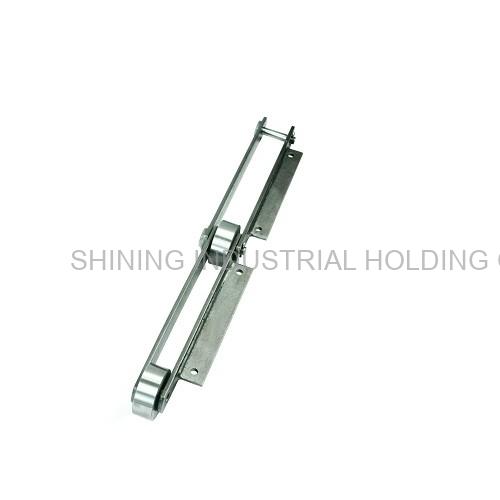

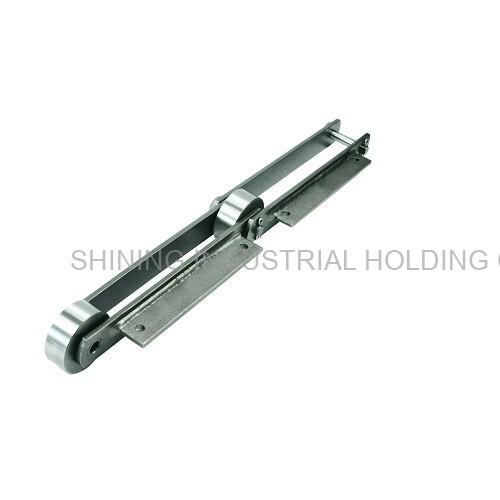

P228.6 large pitch roller chain with A2
SHINING conveyor roller chains can serve in many industrial applications, like food, filling lines, mining equipment, metallurgy industry, lifting equipment, etc. Compared with belts, roller chains provide an average transmission ratio and have high transmission efficiency. These chains do not require a large tensile force, provide reliable transmission and strong overload ability, also can work well under low speed and heavy load.

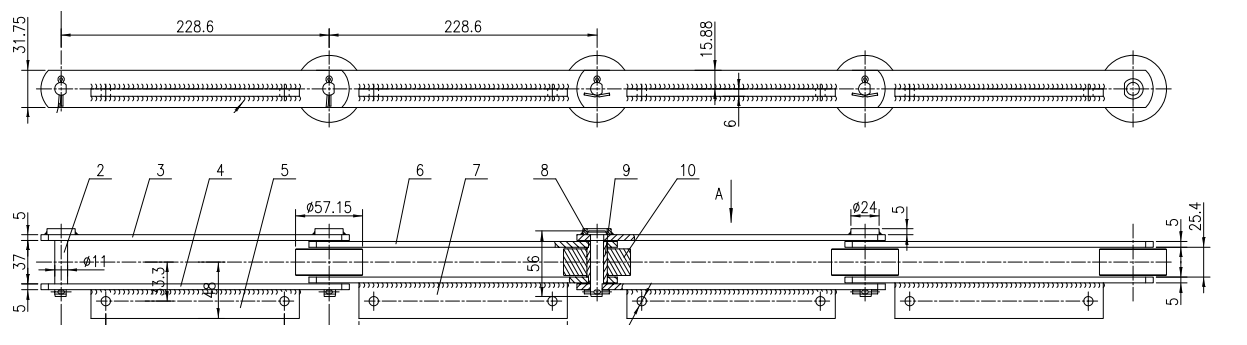

| Chain NO. | Pitch | Chainplate height | Chainplate thickness | Roller diameter | Roller height | Pin diameter | Pin length |
| mm | mm | mm | mm | mm | mm | mm | |
| P228.6 | 228.6 | 31.75 | 5 | 57.15 | 22.6 | 11 | 56 |
