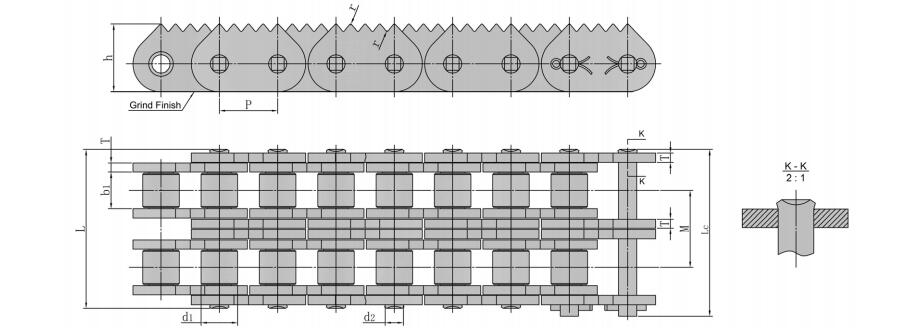

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Row spacing | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h max | T max | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| SH80H/2-5T | 25.4 | 15.88 | 15.75 | 7.92 | 68.8 | 71.29 | 29.36 | 4.0 | 29.29 |
