Product Name: SHINING WH132SS

Product Overview

Discover the SHINING WH132SS welded stainless steel chain, engineered for superior performance in demanding industrial environments. Ideal for wood conveyors, food processing, pharmaceutical manufacturing, marine, and heavy-duty machinery, it features exceptional corrosion resistance, enhanced wear resistance, and a polished surface finish. Made from SS316 plates and 17-4PH pins and bushes, this chain ensures durability and reliability in abrasive and corrosive conditions. Explore the perfect blend of functionality and visual excellence for your industrial needs.

Application Areas:

The SHINING WH132SS welded stainless steel chain is ideal for a variety of demanding applications, including but not limited to:

• Wood conveyor

• Food processing and handling

• Pharmaceutical manufacturin

• Chemical processing

• Marine and offshore environments

• Heavy-duty industrial machinery

Overview:

The SHINING WH132SS welded stainless steel chain is recognized as one of the most reliable options in the stainless steel welded chain category, ranking as the third most commonly used chain. Specifically designed for high-strength performance in highly abrasive conditions, this chain is engineered to meet the rigorous demands of various industrial applications.

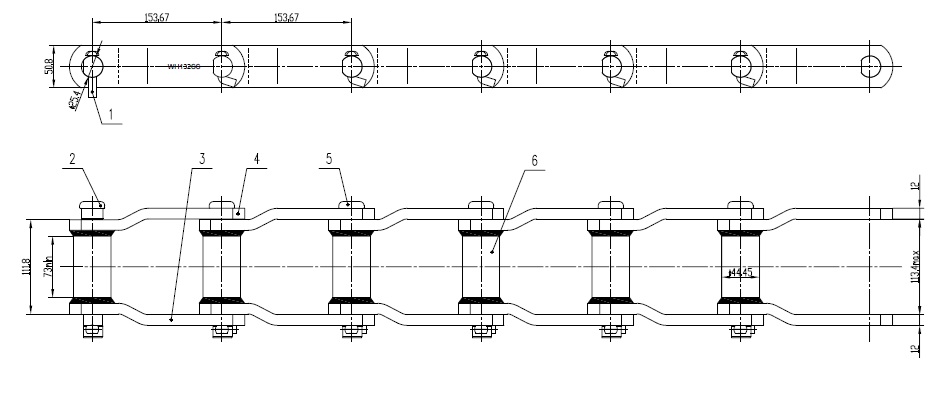

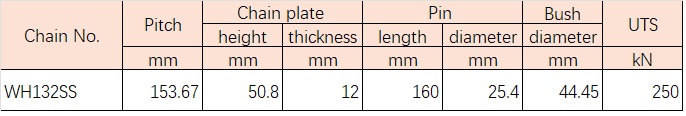

Technical Specifications:

• Chain Pitch: 153.67 mm

• Total Width: 137.4 mm

• Chain Tensile Strength: 250 kN

• Material Composition:

Plate: SS316

Pin and Bush: 17-4PH

Design Features:

1. Exceptional Surface Finish: Our chains feature a meticulously polished, mirror-like finish that minimizes imperfections such as pits, scratches, and burrs. This not only enhances aesthetic appeal but also reduces friction for smoother operational performance.

2. Superior Corrosion Resistance: The chains are treated to remove oxidation and impurities, resulting in a dense passivation layer that provides robust protection against corrosive environments, even under extreme temperatures and humidity.

2. Enhanced Wear Resistance: With a refined surface structure, the SHINING WH132SS chains significantly reduce friction and wear, thereby extending their operational lifespan and reliability.

1. Reduced Surface Contamination: Our advanced manufacturing processes ensure minimal particle and deposit accumulation, maintaining high surface quality—critical for industries with stringent cleanliness standards, such as food processing and pharmaceuticals.

1. Improved Weldability: The clean surface profiles enhance weld strength by facilitating defect-free welding, thereby improving the overall integrity and durability of your projects.

1. Visual Appeal: The uniform shine and attractive design of our chains not only ensure high performance but also contribute to a distinguished presence in any application.

Conclusion:

The SHINING WH132SS stainless steel chain is engineered with advanced surface treatments and superior materials, delivering exceptional performance and durability across a range of industrial applications. Choose the WH132SS for a solution that combines both functionality and visual excellence.
